อะไหล่ปั๊ม EPH EMAUX
IDE36
IDE48
IDE60
IDE72

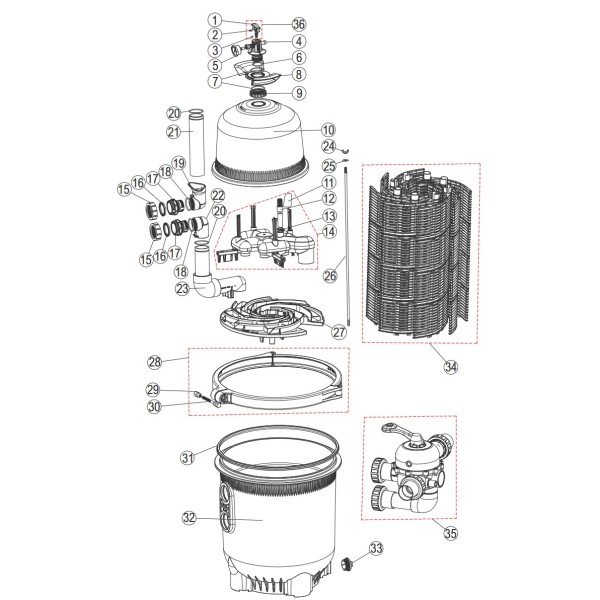

| Key No. | Part No. | Description | Piece(s) Required | Retail 2025 |
|---|---|---|---|---|
| 1 | 550178232 | Air release valve Handle | 1 | 130.00 |
| 2 | 111040077 | O-ring d14.3×2.5 | 1 | 150.00 |
| 3 | 111040078 | O-ring d6×3.5 | 1 | 60.00 |
| 4 | 550178233 | Air Release valve | 1 | 980.00 |
| 5 | 117038519 | Pressure gauge 60psi, plastic casing | 1 | 980.00 |
| 6 | 111040079 | O-ring d50×5 | 1 | 110.00 |
| 7 | 111000048 | O-ring D76×d65.6×4.8 | 2 | 320.00 |
| 8 | 430138225 | Handle | 1 | 790.00 |
| 9 | 550058225 | Handle nut | 1 | 420.00 |
| 10 | 550188173 | IDE36 Upper body | 1 | 4,200.00 |
| 11 | 550188174 | IDE48 Upper body | 1 | 5,600.00 |
| 12 | 550188175 | IDE60 Upper body | 1 | 7,600.00 |
| 13 | 550188176 | IDE72 Upper body | 1 | 9,800.00 |
| 14 | 178701 | Filter bag | 1 | 490.00 |
| 15 | 4109000749 | Air release vent | 1 | 60.00 |
| 16 | 108081847 | Hose clamp 19-44mm | 1 | 280.00 |
| 17 | E220101 | Element upper holder for IDE36 | 1 | 1,520.00 |
| 18 | E220102 | Element upper holder for IDE48 | 1 | 1,640.00 |
| 19 | E220103 | Element upper holder for IDE60 | 1 | 1,640.00 |
| 20 | E220104 | Element upper holder for IDE72 | 1 | 1,750.00 |
| 21 | 5500010033 | Element lower holder for IDE36-72 | 1 | 1,520.00 |
| 22 | 550128230 | Inlet adaptor | 1 | 690.00 |
| 23 | 430178159 | Union Nut 2' 90 | 2 | 150.00 |
| 24 | 111040071 | O-ring D77Xd62X8 | 2 | 150.00 |
| 25 | 430248177 | Outer thread connector | 2 | 470.00 |
| 26 | 111040081 | O-ring d63.5×5.3 | 2 | 150.00 |
| 27 | 550128231 | Outlet adaptor | 1 | 620.00 |
| 28 | E220105 | Elbow assemble | 1 | 820.00 |
| 23 | 111040080 | O-ring d50.5×2.5 | 2 | 110.00 |
| 24 | 112303591 | Wing nut | 1 | 190.00 |
| 25 | 112010174 | Washer | 1 | 90.00 |
| 26 | 5900510060 | Stainless Still Retainer Rod IDE36 | 1 | 870.00 |
| 27 | 5900510061 | Stainless Still Retainer Rod IDE48 | 1 | 1,150.00 |
| 28 | 5900510062 | Stainless Still Retainer Rod IDE60 | 1 | 1,420.00 |
| 29 | 5900510063 | Stainless Still Retainer Rod IDE72 | 1 | 1,420.00 |
| 30 | 550228177 | Bottom Body | 1 | 13,900.00 |
| 31 | 5100553 | Drain plug with O-ring | 1 | 110.00 |
| 32 | 1070410055 | PVC Pipe 2inchx112mm for IDE36 | 1 | 270.00 |
| 33 | 1070410056 | PVC Pipe 2inchx264mm for IDE48 | 1 | 460.00 |
| 34 | 1020410057 | PVC Pipe 2inchx416mm for IDE60 | 1 | 600.00 |
| 35 | 1020410058 | PVC Pipe 2inchx568mm for IDE72 | 1 | 760.00 |
| 36 | 92201001 | Assembly set of IDE36 Element | 1 | |
| 37 | 92201002 | Assembly set of IDE48 Element | 1 | refer to grid element price list |
| 38 | 92201003 | Assembly set of IDE60 Element | 1 | |
| 39 | 91902540 | IDE 6 way 2 inch multiple valve | 1 | refer to price list |
| 40 | E140406 | Air relief valve handle with O-rings | 1 | 150.00 |
-
-
