Emaux MFS20 MV1.5 inch Flowrate 10Q per hr Dimension 50 cm

ถังกรองทราย Emaux MFS20

    Model: MFS24
    Connection: 1.5 inch
    Flowe Rate: 10.0m3/h
    Sand:  100 กก.

Max Side Mount Filter

Highlight Features:

• Suggested Installation: Domestic/commercial pool /

• above-ground pool/spa pool

• Max operation Pressure 40 PSI/2.8 bar

• max temperature of 50 c

• universal standard of union connection provide

• ABS lateral provide

• Suggested size of madia : 0.5-0.8mm

ถังกรองทราย Emaux MFS Series

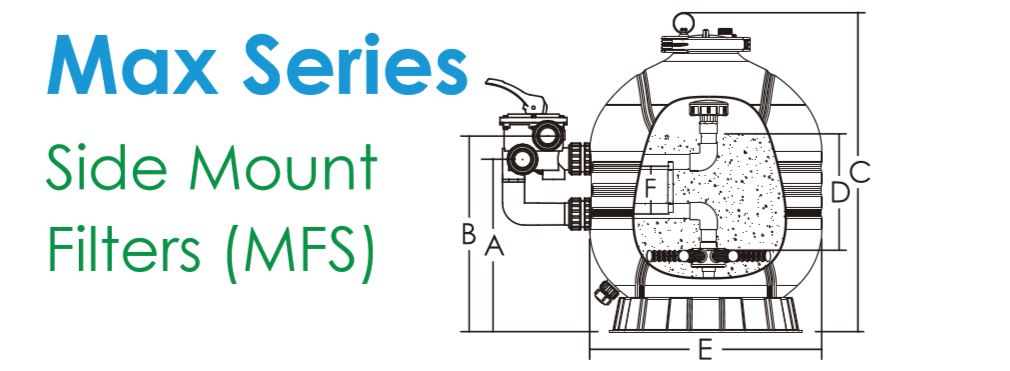

Product Dimension

Model	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)
MFS17	355	418	670	195	425	125
MFS20	396	549	760	225	500	125
MFS24	430	493	825	280	600	125
MFS27A	480	543	946	300	675	130
MFS27	460	546	946	300	675	125
MFS31	508	594	968	370	775	130
MFS35	564	650	1086	440	875	130
